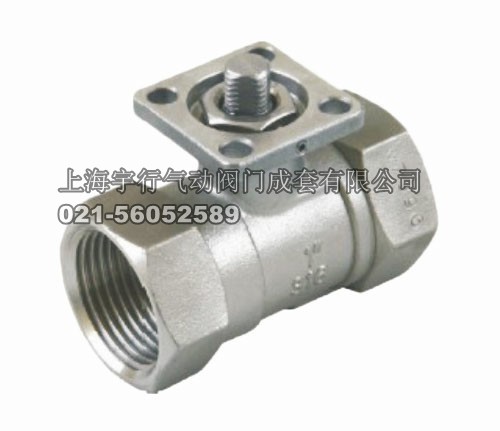

| GUQ气动真空球阀是通过电磁换向阀改变气路方向，控制执行气缸来驱动球阀，达到接通或切断真空(压力)系统管道路中的介质流。应用于真空、乳制品、酒业、生物工程、食品、水处理、饮料、化妆品及水处理领域。可选配反馈信号装置及电气阀门定位器。GUQ气动真空球阀Pneumatic High Vacuum(Pressure)Ball Valve■Rack-and Pinion system owners, nonprofit organizations, and office workers who produced in-house newsletters, bulletins, and the like, and who mostly used Windows-based Purchase. Orkers who produced in-house newsletters, bulletins, and the like, and who mostly used Windows-based Purchase and fixed position of the electricity valve machine.GUQ气动真空球阀主要技术性能Main Technical Performance■■■阀门漏率：Valve Leak Rate≤1.3×10-4Pa.L/S.适用温度：Applicable Temperature-30～+150℃-30～+150℃(PPL密封)气源压力：Annoy pressure0.4～0.6MPa适用范围：Applicability连接型式 Loose Flange使用压力范围(Pa)活套法兰(GB6070)0.6×106～1.3×10-4焊接法兰(GB6070)1.6×106～1.3×10-4快卸法兰(GB4982)0.1×106～1.3×10-4螺纹连接 Threaded Connection1.6×106～1.3×10-4GUQ气动真空球阀主要零件材料Materials of Main Parts■■阀体、阀盖、阀杆：不锈钢密封件：四氟乙烯、丁腈橡胶、氟橡胶、PPL。Body, disc and stem: stainless steel.Sealing element: PTFE, NBR, Viton, PPL.CONSTRUCTION FIGHTS (mm)■GUQ气动真空球阀外形及连接尺寸(mm)(JB919)Overall and Connection Dimensions(mm)■螺纹连接的外形及连接尺寸(图一) Model型号DNGHELGUQ-10(G)101/4"15310468GUQ-16(G)161/2"15510472GUQ-20(G)203/4"16010482GUQ-25(G)251"16314090GUQ-32(G)321-1/4"180140112GUQ-40(G)401-1/2"186140120GUQ-50(G)502"233164145GUQ-63(G)632-1/2"272164185GUQ-80(G)803"351190210GUQ-100(G)1004"370190268■活套法兰连接(GB6070)(图二) Model型号DNDDoHELn-φcGUQ-10(F)105540153105844-φ6.6GUQ-16(F)166045155130844-φ6.6GUQ-25(F)2570551631651144-φ6.6GUQ-32(F)3290701801651404-φ9GUQ-40(F)40100801861901604-φ9GUQ-50(F)50110902331901704-φ9GUQ-63(F)631301102722501954-φ9GUQ-80(F)801451253512502038-φ9GUQ-100(F)1001651453702802808-φ9■快卸法兰连接(GB4982)(图三) Model型号DND1DHELGUQ-10(KF)1012.23015310484GUQ-16(KF)1617.23015510484GUQ-25(KF)2526.240163140114GUQ-32(KF)3234.255180140140GUQ-40(KF)4041.255186140160GUQ-50(KF)5052.275233164170 |
